Offshore transport and installation

One size fits all, Sleipnir installs one of the world's smallest platforms

Offshore transport and installation

P11-Unity Installation

Dana Petroleum’s P11-Unity platform weighs 395 metric tons, making it one of the world's smallest.

See our response

At a glance

Sleipnir safely installed Dana Petroleum’s new P11-Unity platform on behalf of client HSM Offshore.
Lifting operations complete within an hour.
Swaging utilized over grouting
Zero recordable HSE cases

Sleipnir’s surgical precision makes it able to install even the most delicate structures within the required tolerances. A great demonstration of how this impressive vessel can handle project of all shapes and sizes

Jonquelle Low

Project Manager Dana Petroleum

The Heerema promise

Sustainability

As a carbon-neutral contractor, you can trust Heerema to create sustainable value for your project.

Team onboard Aegir Greater Changhua project

Safety

We have the highest standards of safety and believe in an incident and injury-free workplace. To achieve this goal we follow our Dare to Care program.

Reliability

With over fifty years of experience in transporting, installing, and removing offshore infrastructure you can rely on Heerema.

P11 Unity Dana Petroleum HSM Offshore (1)-1

P11 Unity Dana Petroleum HSM Offshore (2)-1

P11 Unity Dana Petroleum HSM Offshore (3)-1

P11 Unity Dana Petroleum HSM Offshore (4)-1

P11 Unity Dana Petroleum HSM Offshore (6)-1

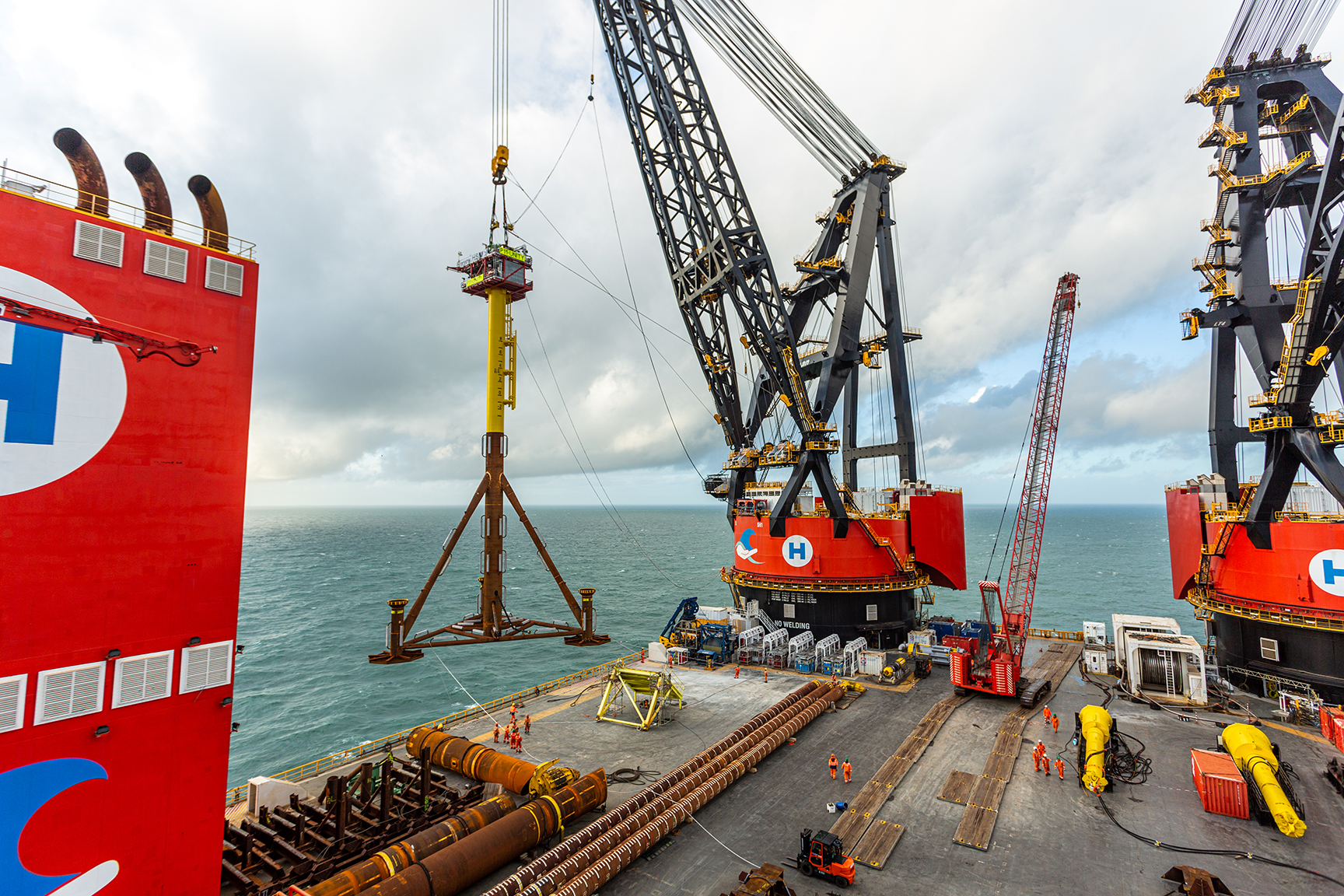

Installing Dana Petroleum's P11-Unity platform

Lifting the platform from Sleipnir's deck.

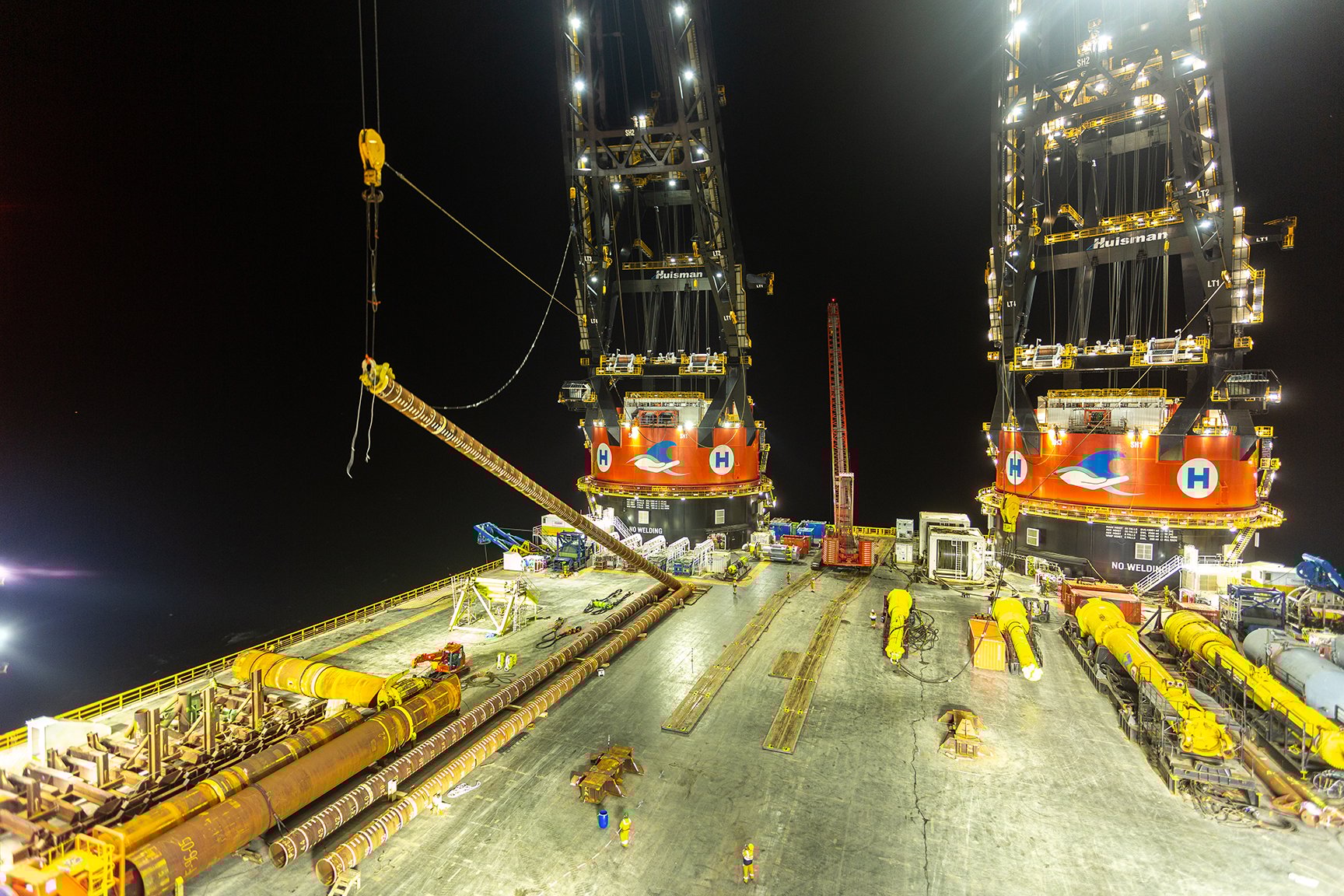

Installating Dana Petroleum's P11-Unity platform

Lifting the piles from Sleipnir's deck.

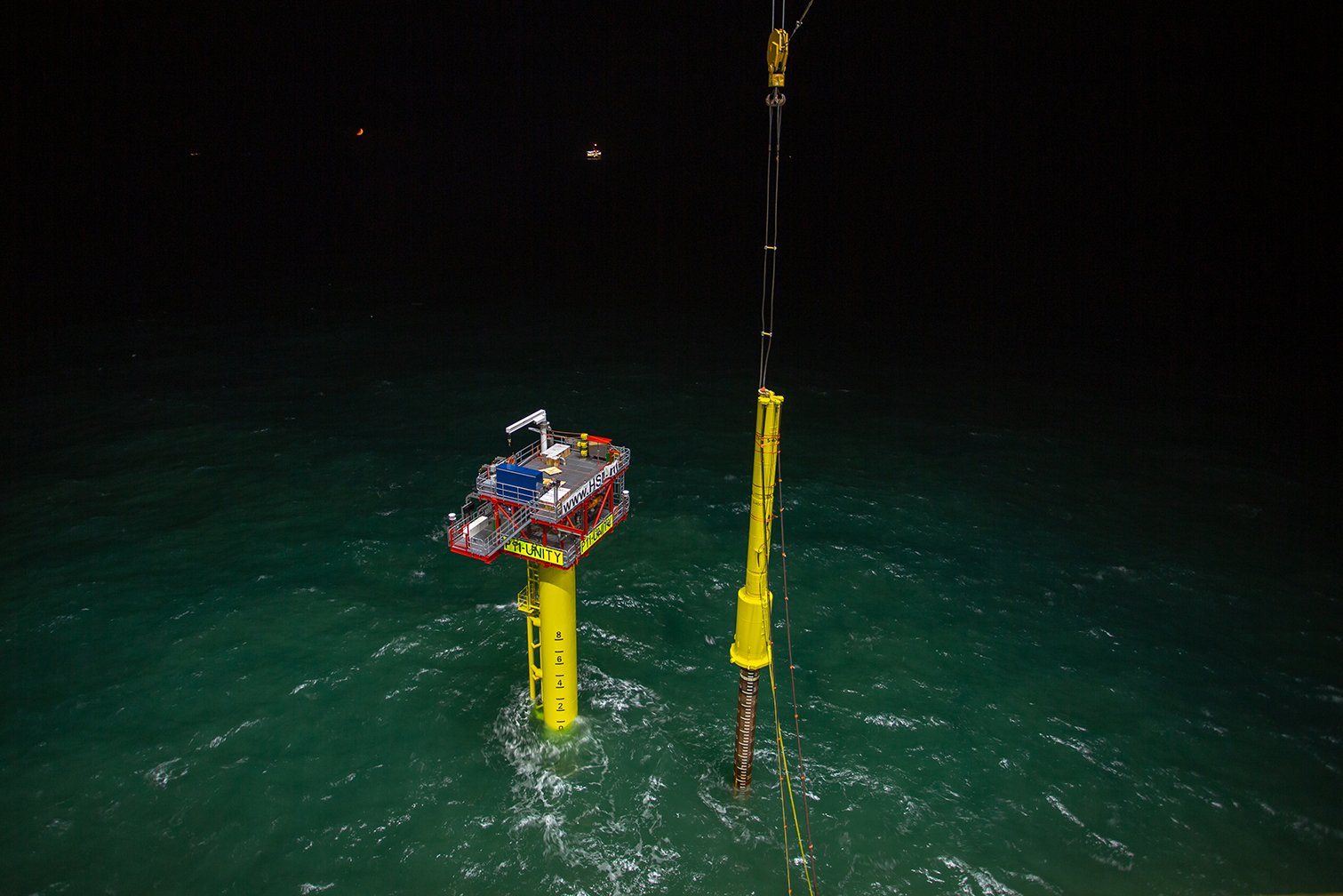

Installing Dana Petroleum's P11-Unity platform

Pile driving for the P11-Unity platform using the MHU-xxxx hammer.

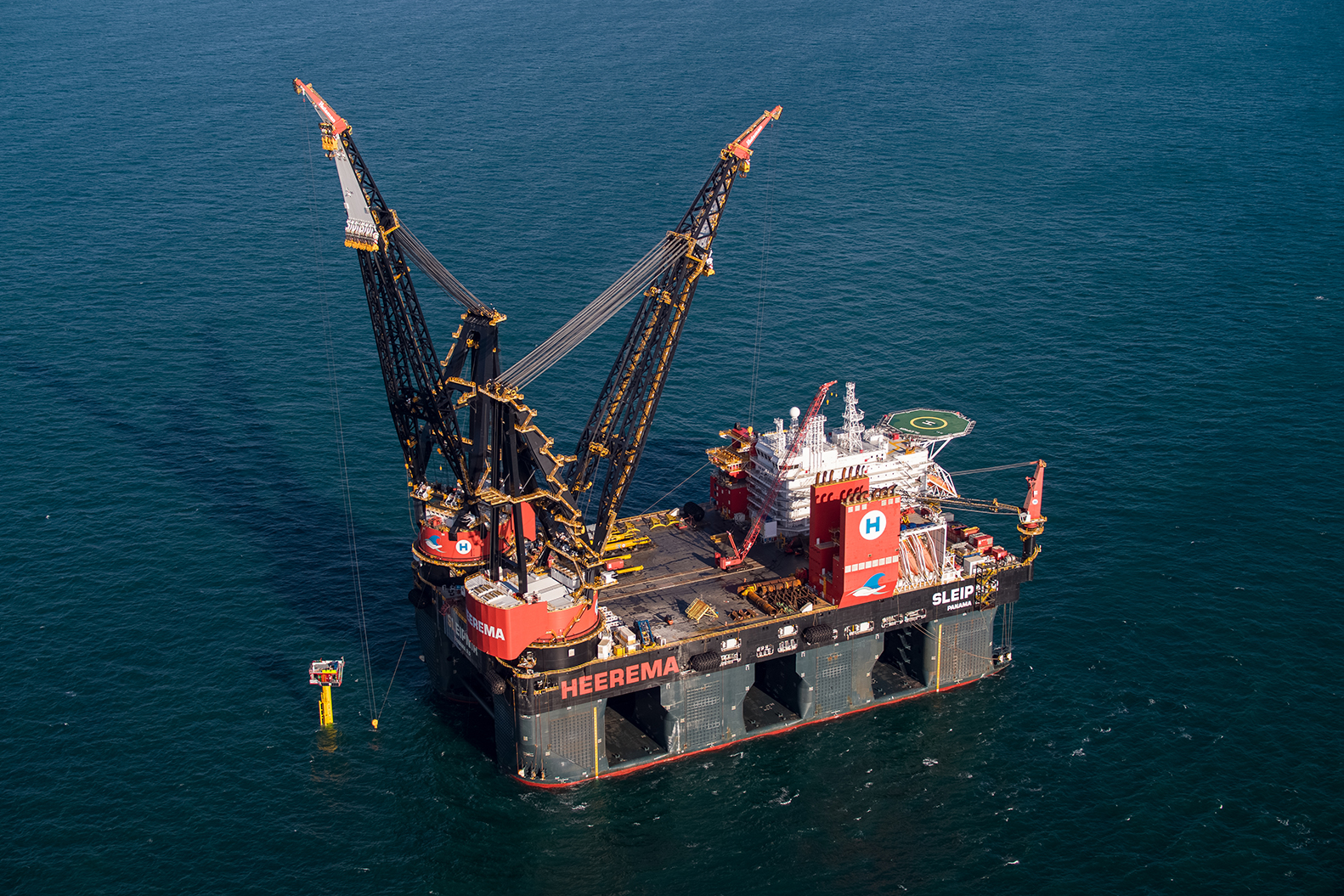

Installing Dana Petroleum's P11-Unity platform

The P11-Unity platform safely and successfully installed.

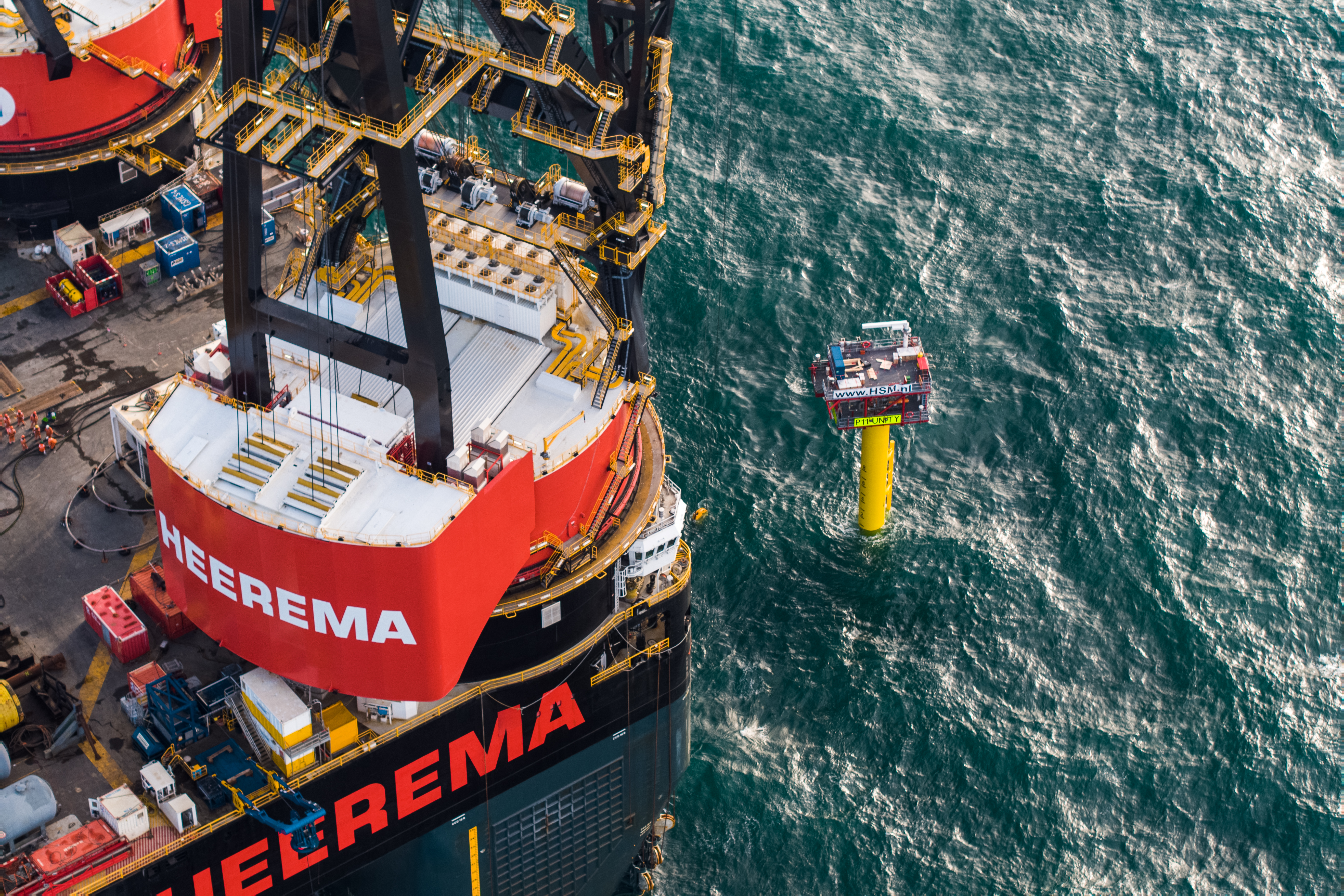

Installing Dana Petroleum's P11-Unity platform

The P11-Unity platform safely and successfully installed.

Installing Dana Petroleum's P11-Unity platform

P11-Unity project team.

HSM Offshore & Heerema for end client Dana Petroleum

Let's talk about your challenge

Transporting and Installing the P11-Unity platform

In October 2020, Sleipnir safely installed Dana Petroleum’s P11-Unity platform, which at 395 metric tons is one of the world's smallest. Heerema was contracted for the transportation and installation of P11-Unity by HSM Offshore, who fabricated the platform at their yard in Schiedam, the Netherlands.

P11-Unity

The P11-Unity platform is a minimum facilities wellhead platform that was pre-commissioned onshore to minimize the offshore construction scope. The platform is designed for marine access only, using similar principles to the offshore wind industry. It will be remotely operated from the host P11-B-De Ruyter platform, also operated by Dana Petroleum. The P11b Unity Development Project expects first gas in the second half of 2021.

Transportation

Heerema’s scope included the lifted load-out of the P11-Unity platform from HSM Offshore’s quayside at Schiedam. The lift was executed by Bonn & Mees on October 15 and the platform was loaded-out onto the 122 m long Heerema owned barge H-406. After that the P11-Unity platform was transferred to Sleipnir’s mooring location at the Port of Rotterdam by Muller, arriving on October 17.

Sleipnir arrived in the Port of Rotterdam to lift the P11-Unity platform on to the vessel’s deck on October 19 and secured the tripod for transportation to the offshore installation location. The vessel mobilized on October 22, and after an eight hour sail Sleipnir arrived on location, in Block P11b, around 67 km off the coast of Scheveningen, the Netherlands

Installation

On October 22, Sleipnir lifted the P11-Unity platform from the vessel's deck to the seabed, with this operation taking around one hour.

The P11-Unity platform was delivered by HSM Offshore safely, timely, and with great accuracy. Even the smallest platforms deserve our utmost attention. Heerema's mighty Sleipnir completed the project by safely installing the platform at sea.

Martin Kooijman, HSM Offshore

Throughout the 55,000 working hours that were spent on this project up to installation, there were zero recordable HSE cases, the result of strong cooperation and high regard for safety from all parties.

Key information

Milestones

Contract signed: June 15, 2020

Offshore start date: October 15, 2020

Offshore end date: October 18, 2020

Main spread

Sleipnir

Main technical data

Total weight: 395 metric tons

Need a specific answer? Let us help

Michiel Pors

Commercial Manager Transport and Installation

Ask us a question

Sleipnir

With the ability to run on emission-reducing LNG and various other sustainability measures the vessel is the world's most sustainable SSCV.
